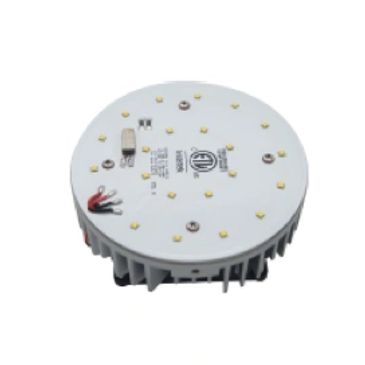

LED RETROFIT KIT

---

Benefits:

Improved illumination performance and replaces conventional Halogen lamps

Reduce waste by using the existing luminaire

nstallation plate free to design

Eliminate the relamping cycle

Pure aluminum(1017), fast heat conduction

Applications:

Parking lot, Tennis Court, Wall, Airport, Auto Dealership, Corporate & Office, Education, Government, Healthcare, Municipal, Pedestrian, Petroleum & Convenience Stores, Recreation & Public Venues, Restaurants & hospitality, Retail & Grocery, etc.

Wattage: 75W, 80W, 100W, 120W,

150W, 200W, 320W, 400W

VOLTAGE: 100-277/180-528V

LUMENS: 9000LM-48000XLM

CCT: 4000K, 5000K, 5700K

WARRANTY: 5 Year on Fixture & Driver

Power Efficiency more than 95%

Efficiency(lm/w): up to 120LM/W

Color Rendering Index(CRI): > 70 CRI

Color Temperature(CCT): 4000K, 5000k, 5700k

Built in fans for heat dissipation

Mean Well HLG(7 years warranty), optional for photocell

Certification: ETL/ cETL listed

0-10v dimming option

Working Temperature(°C): -34°C to 54°C

Warranty 5 years, L70 Life 70,000 hours.
